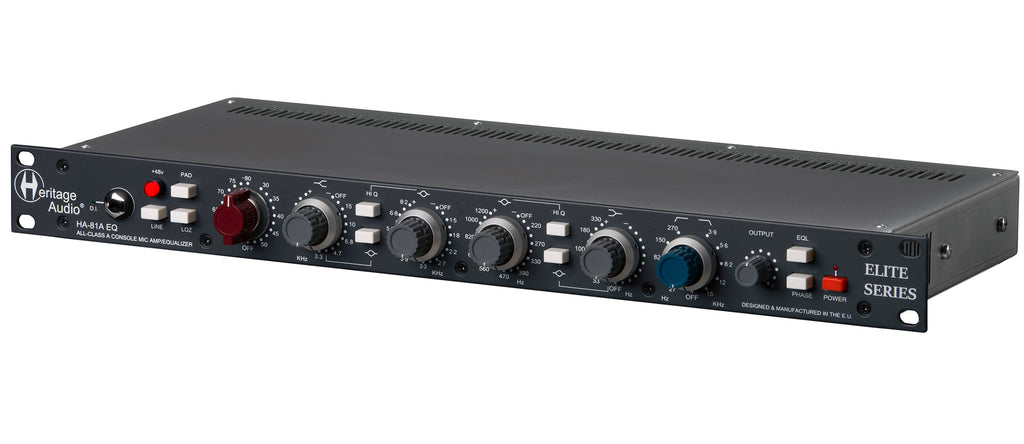

The HA-81A’s preamp section is an 80 dB, all discrete Class A design with Carnhill St Ives input and output transformers, exactly the same ones found in the other Elite Series modules.
The preamp features gain, output trim, -20 dB pad, polarity reverse, and +48 V phantom power.
The HA-81’s equalizer section is an exceptionally musical 4 band, inductor-based equalizer with high and low pass filters. Where 3 band equalizers such as the typical 73-style exceed at musicality but may be short of features, the HA-81A EQ excels at both equally. Extreme control over Shelf or Bell response curves on the high and lows, dual Q on both mid bands, with dedicated high and low mid bands, and a range of 40 frequency selections to choose from.
The Heritage HA-81A EQ utilizes only rotary switches and precision, concentric potentiometers. And like all of the products in our Elite range, the HA-81A EQ is built with the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners — all at the Heritage Audio headquarters in Madrid-Spain.
- Microphone input impedance: HI=1200 Ω minimum, LO=300 Ω minimum. Higher gain positions gradually have greater impedances, optimum for low gain ribbon mics. Input is transformer balanced and floating.
- Line input impedance: 10 kΩ bridging, transformer balanced and floating.
- Output impedance: Less than 75 Ω, transformer balanced and floating, to drive a load of 600 Ω.
- Maximum output: Greater than +26.5 dBu into 600 Ω (internally terminated).
- THD: Less than 0.025 % at 1 kHz, Less than 0.05 % at 100 Hz.
- Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB) – EQ Off.
- Maximum Gain: Slightly greater than 80 dB.
- Equivalent Input Noise: Less than -125 dBu at 80 dB mic gain.
- Output stage noise: Less than -100 dBu.
- Power consumption: Less than 150 mA @48 V DC.
-----------------------------------------------------------
NOTA IMPORTANTE:
El Precio publicado en este producto NO INCLUYE lo siguiente:
- IVA de facturación
- Gastos de importación
- Gastos de envío a dirección domicilio del cliente final.
Para saber el precio total en Pesos MXN, o negociar un precio especial, por favor contáctanos via Whatsapp al +52 818 253 5558
Gracias, AGAVE AUDIO
-----------------------------------------------------------
